OSSBox En

Specifications:

• CPU:VIA  C3 Nehemiah 1.0 Ghz


• DRAM :Long dimm DDR slot*2  32MB~2048MB


• Storage: 2 IDEconnector. IDE 1: standard connector; IDE 2: mini connector


• Vedio Output：Built-in S-vedio terminal, D-sub, AV terminal, DVI port


• USB :4 USB 2.0 ports


• Audio :Analog RCA, M-Audio, Coaxial output. MIC input


• Lan:2 port 10/100 Lan  (RTL8100). Lan 2: Mini PCI slot


• PCI: One PCI slot，can be expanded by Raid , Graphics ,4 Port lan card, switch Trunk card, TV Tuner Cardterminal, DVI port


• Other ports: Multi-Card Reader, Smart card reader (can be used in ATM transfer), Serial port


• Mpeg Decoder:Sigma designs REALmagic EM8475 can display mpeg 1,2 ,divx codec (1080i ok )
  Spec  http://www.hesw.com/product/processo...x/em847Xpb.pdf

  same as Sigma Designs REALmagic X-Card  high-end software mpeg card
  http://www.tomshardware.tw/801,review-801.html

  cannot displayH.264


Accessories & package

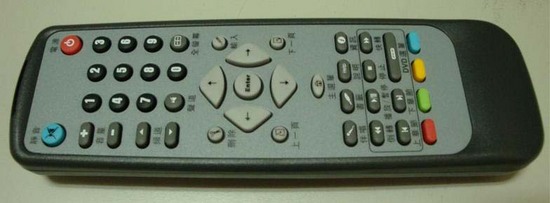

1. Remote controller



2. DVI to VGA convertor

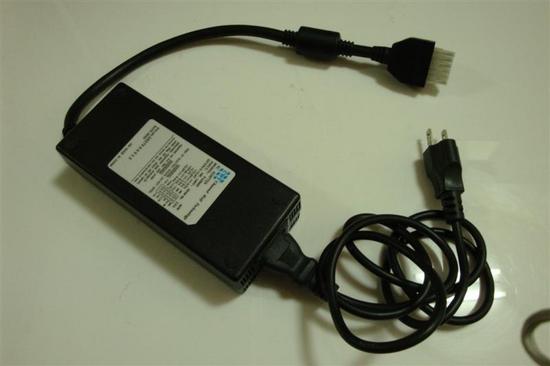

3. power supply+power cord


Drives

• Sigma REALmagic Xcard MPEG Decoder Card.zip download Link:
  http://www.sigmadesigns.com/public/Support/downloads.html#xcard
  cannot use Setup, need new hareware

• video_CLE266_16944445_XP downloard link：
  http://wiki.osslab.org.tw/@api/deki/files/460/=video_CLE266_16944445_XP.zip




Applicable software

• Win XP
  Smooth in internet browsing and playing DVD, mpeg I and II  (partially smooth in 720p, not smooth in 1080i)
  advantafes: can totally support Mpeg Decoder
         DVB-T driver ok
         P2P Stream (PPLive and XBMC can be completely integrated.)
         Good software support
  disavantages:Embedded Flash occupies large amount of space and OS gets damaged easily
        OS authorizatioin is not free.

• FREE VDR
  When in combination with satellite receiver card, it can be used in playing DVB-S mpeg 2 HD, just like DVB-S Box. There is built-in support for mpeg decoder
  CNVDR http://www.cnvdr.org/bbs/viewthread....extra=page%3D1

• Geexbox

• XBMC
  Can download xbmc live CD or USB Image  (with OS),  it takes up 2GB of the space
  Download link: http://jaist.dl.sourceforge.net/sour..._Live-8.10.zip
  The current version of XBMC is not compatible with OSS Box.  in process

• thin client application: thinstation

• Pfsense feature: built-VPN server

• # IPCOP (has proxy function)
  http://www.pczone.com.tw/vbb3/thread/16/109334/

• # Coyote
  http://www.pczone.com.tw/vbb3/thread/16/109306/

• FreeUTM Untagle

• AntiSpam http://nopam.ccu.edu.tw/

• IP PBX, etc, all can work ( can be booted up with CF CARD,USB)

Storage Design

1. USB Boot
   A. need to change the wiring of USB stick on the chassis.

   B. insert directly in the USB port in chassis' motherboard

   C. card reader cf slot


2. ATA Storage
   A. Standard IDE HDD
   B. CF to 3.5 Storage
   C. IDE SSD
       should consider mode when use CF
       Please refer to: http://www.mobile01.com/topicdetail....f=159&t=764153

3. Lan Boot
   Need to write boot code on main board's flash bios


FQA

1. Since there are many output formats, changes must be made in BIOS in order to output correctly. For example, set to DVI when want to use DVI.
   Settings of display card's image output are the same with that of BIOS. If set to CRT+TV, output will be done through terminals (AV, S, component vedio). Hence, following match settings are configured:
   Set to "TV" when need to use AV, S, component vedio output
   Set to "CRT" or "CRT+DVI" when need to use D-sub (through DIV to D-sub)
   Set to "DVI" or "CRT+DV when need to use DVI



Photos

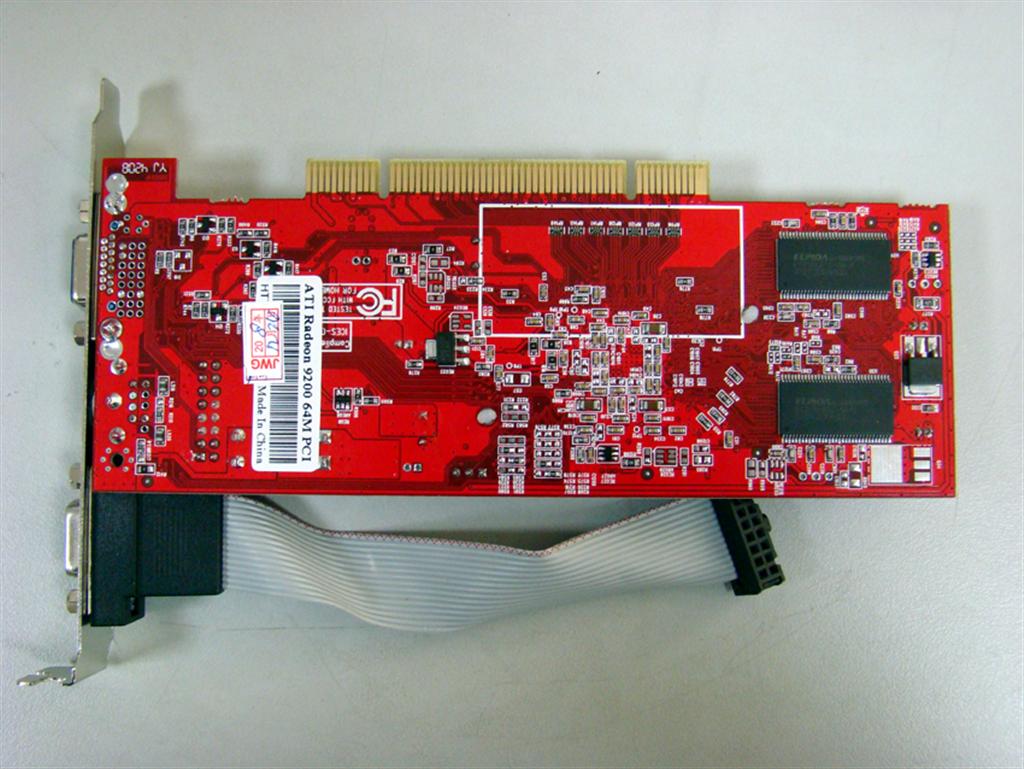

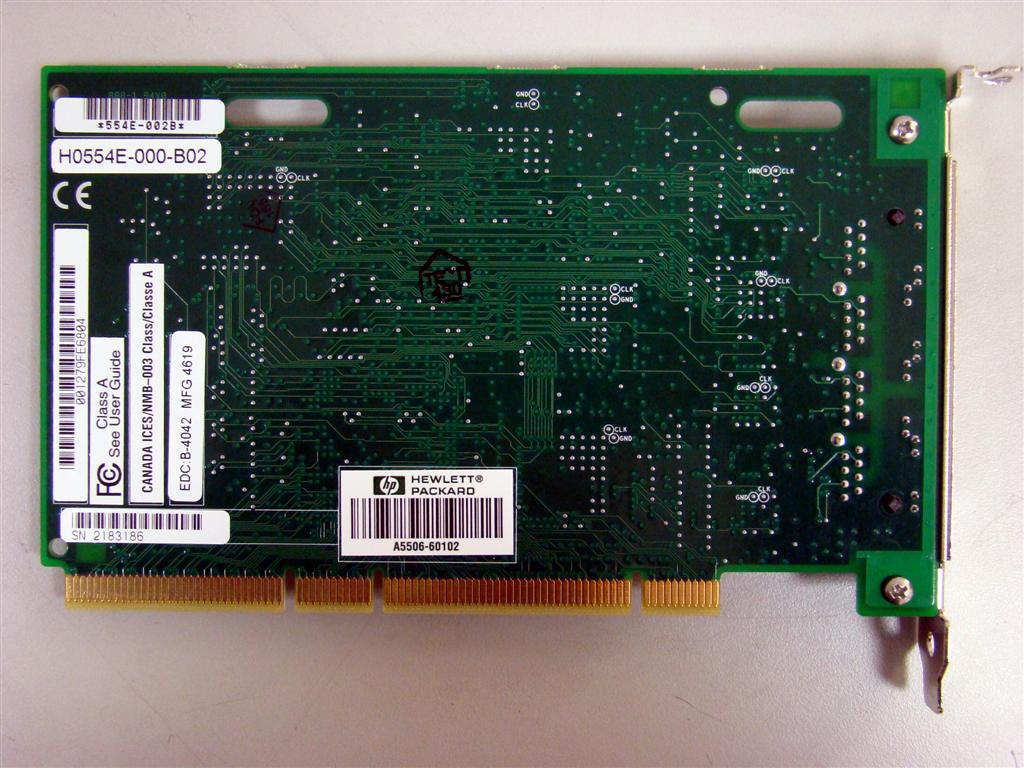

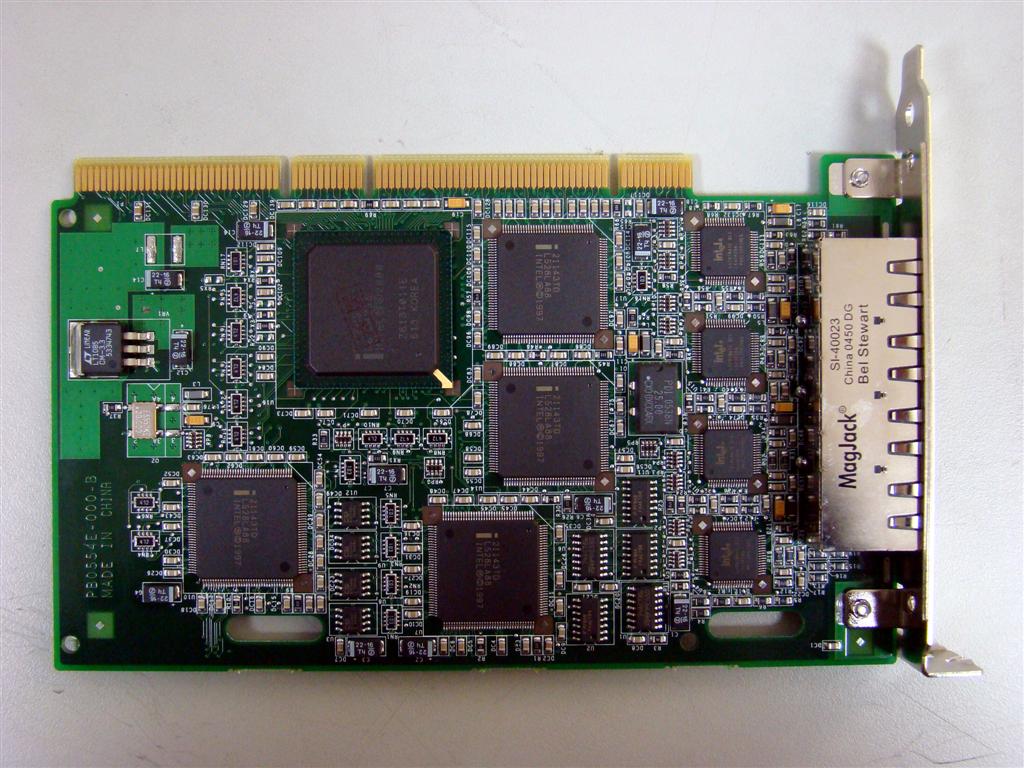

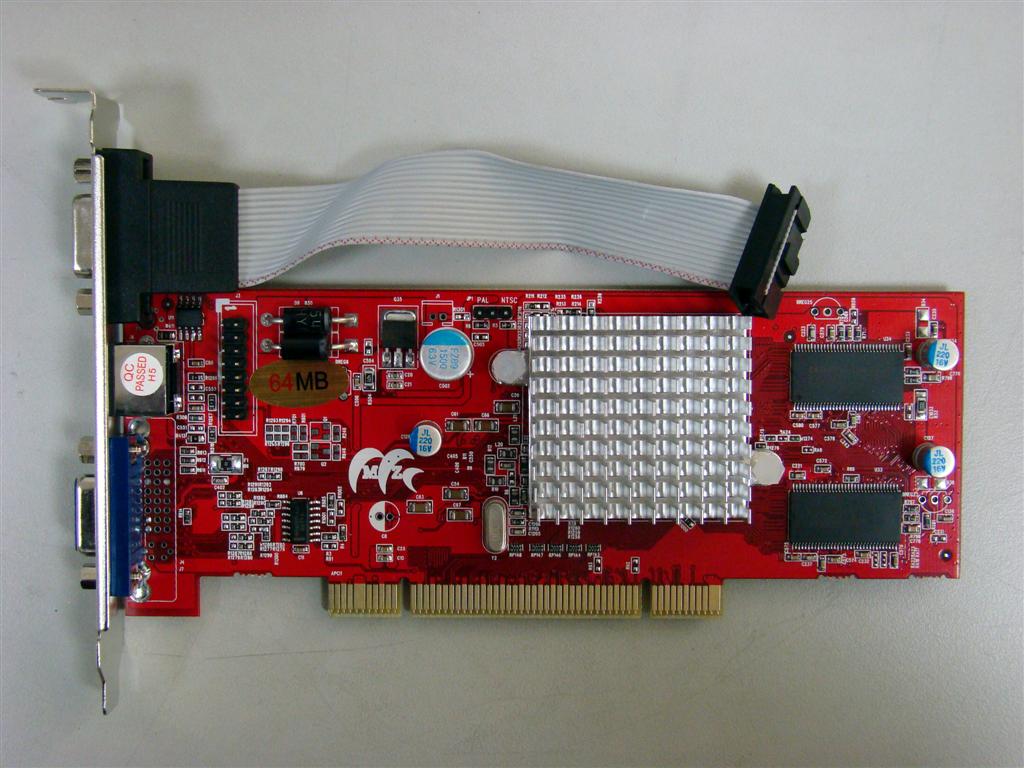

circuit board and connector
