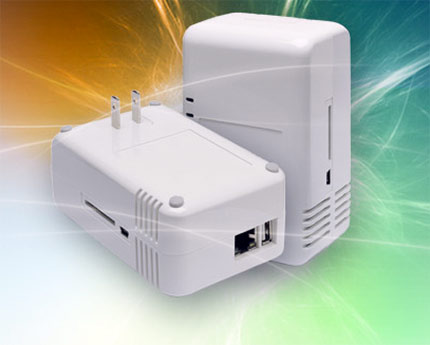

SheevaPlug

使用 mini-USB 登入 SheevaPlug

由於 SheevaPlug 無法直接連結螢幕，更無法接上鍵盤，所以要登入內建的 Ubuntu，有兩種方法：

1. 網路上有 DHCP Server，且有權限可以讀取 IP 租用的紀錄。
   Ubuntu 的網路設定預設為 DHCP 模式，透過讀取網路上的 DHCP Server 的 IP 租用紀錄，找出 SheevaPlug 所租用 IP 位址，然後使用 PuTTY 以 SSH 模式連結 SheevaPlug。
2. 以 Windows 操作而言，安裝 FTDI 2232 驅動程式，使 Windows 可以透過 mini-USB cable 以 RS232 模式登入 SheevaPlug；以 Linux 操作者，請參考這篇 Serial terminal。

由於第一項實用性較低，本章節將以第二項操作為主要說明內容：

// 下載 FTDI 2232 Driver

SheevaPlug_Host_SWsupportPackageWindowsHost1.2.zip

Driver 安裝方式是，將壓縮檔解壓縮，然後將 SheevaPlug 插上電源，並與 WindowsXP 用 mini-USB 連接，此時 WindowsXP 會偵測到有新裝置，並出現安裝驅動程式的視窗，選擇手動安裝，並將目錄指向剛剛解壓縮的檔案目錄，若一切正常，會陸續有三次的驅動安裝，每次都指向同個目錄即可；若在這裡，WindowsXP 始終沒有偵測到適合的驅動程式，請改用本站所修改的 driver。

// 找出虛擬的 COM 裝置名稱
將 SheevaPlug 插上電源，並與 WindowsXP 用 mini-USB 連接。
WindowsXP > 開始 > 設定 > 控制臺 > 效能及維護 > 系統管理工具 > 電腦管理 > 裝置管理員

連接埠 (COM 和 LPT)
--> USB Serial Port (COM9)

NOTE: 這裡所顯示的 COM9，編號在不同電腦下可能會有所不同。

// 以 PuTTY 軟體登入系統
開啟 PuTTY，

Connection type : Serial
Serial line : COM9
Speed : 115200

連接後若出現黑畫面，多按幾次 Enter，若正常會出現 debian 登入提示。

內建的 Ubuntu 作業系統資訊

// 作業系統版本

root@debian:~# cat /etc/lsb-release
DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=9.04
DISTRIB_CODENAME=jaunty
DISTRIB_DESCRIPTION="Ubuntu jaunty (development branch)"

root@debian:~# uname -a
Linux debian 2.6.22.18 #1 Thu Mar 19 14:46:22 IST 2009 armv5tejl GNU/Linu

// CPU

root@debian:~# cat /proc/cpuinfo
Processor       : ARM926EJ-S rev 1 (v5l)
BogoMIPS        : 1192.75
Features        : swp half thumb fastmult edsp
CPU implementer : 0x56
CPU architecture: 5TE
CPU variant     : 0x2
CPU part        : 0x131
CPU revision    : 1
Cache type      : write-back
Cache clean     : cp15 c7 ops
Cache lockdown  : format C
Cache format    : Harvard
I size          : 16384
I assoc         : 4
I line length   : 32
I sets          : 128
D size          : 16384
D assoc         : 4
D line length   : 32
D sets          : 128

Hardware        : Feroceon-KW
Revision        : 0000
Serial          : 0000000000000000

// RAM

root@debian:~# cat /proc/meminfo
MemTotal:       515636 kB
MemFree:        486128 kB
Buffers:             0 kB
Cached:          12352 kB
SwapCached:          0 kB
Active:          10400 kB
Inactive:         6316 kB
SwapTotal:           0 kB
SwapFree:            0 kB
Dirty:               0 kB
Writeback:           0 kB
AnonPages:        4380 kB
Mapped:           2804 kB
Slab:             9844 kB
SReclaimable:      796 kB
SUnreclaim:       9048 kB
PageTables:        216 kB
NFS_Unstable:        0 kB
Bounce:              0 kB
CommitLimit:    257816 kB
Committed_AS:     8576 kB
VmallocTotal:   122880 kB
VmallocUsed:       564 kB
VmallocChunk:   122296 kB

// Installed Package

root@debian:~# dpkg -l
Desired=Unknown/Install/Remove/Purge/Hold
| Status=Not/Inst/Cfg-files/Unpacked/Failed-cfg/Half-inst/trig-aWait/Trig-pend
|/ Err?=(none)/Hold/Reinst-required/X=both-problems (Status,Err: uppercase=bad)
||/ Name           Version        Description
+++-==============-==============-============================================
ii  adduser        3.110ubuntu2   add and remove users and groups
ii  apt            0.7.19ubuntu1  Advanced front-end for dpkg
ii  apt-utils      0.7.19ubuntu1  APT utility programs
ii  base-files     5ubuntu1       Debian base system miscellaneous files
ii  base-passwd    3.5.19         Debian base system master password and group
ii  bash           3.2-4ubuntu1   The GNU Bourne Again SHell
ii  belocs-locales 2.4-4ubuntu2   tools for compiling locale data files
ii  bsdutils       1:2.14-1ubuntu Basic utilities from 4.4BSD-Lite
ii  busybox-initra 1:1.10.2-2ubun Standalone shell setup for initramfs
ii  bzip2          1.0.5-1ubuntu1 high-quality block-sorting file compressor -
ii  ca-certificate 20080809       Common CA certificates
ii  console-setup  1.28ubuntu4    Set up the font and the keyboard on the cons
ii  console-termin 4.26-2.1       Fixed-width fonts for fast reading on the Li
ii  coreutils      6.10-6ubuntu1  The GNU core utilities
ii  cpio           2.9-14ubuntu1  GNU cpio -- a program to manage archives of
ii  cron           3.0pl1-105ubun management of regular background processing
ii  cryptsetup     2:1.0.6-7ubunt configures encrypted block devices
ii  dash           0.5.4-12ubuntu POSIX-compliant shell
ii  debconf        1.5.24ubuntu2  Debian configuration management system
ii  debconf-i18n   1.5.24ubuntu2  full internationalization support for debcon
ii  debianutils    2.30ubuntu2    Miscellaneous utilities specific to Debian
ii  dhcp3-client   3.1.1-5ubuntu1 DHCP client
ii  dhcp3-common   3.1.1-5ubuntu1 common files used by all the dhcp3* packages
ii  diff           2.8.1-12ubuntu File comparison utilities
ii  dmsetup        2:1.02.27-4ubu The Linux Kernel Device Mapper userspace lib
ii  dosfstools     3.0.1-1        utilities for making and checking MS-DOS FAT
ii  dpkg           1.14.24ubuntu1 Debian package management system
ii  e2fslibs       1.41.3-1ubuntu ext2 filesystem libraries
ii  e2fsprogs      1.41.3-1ubuntu ext2/ext3/ext4 file system utilities
ii  eject          2.1.5+deb1+cvs ejects CDs and operates CD-Changers under Li
ii  file           4.26-2         Determines file type using "magic" numbers
ii  findutils      4.4.0-2ubuntu3 utilities for finding files--find, xargs
ii  gcc-4.3-base   4.3.2-2ubuntu1 The GNU Compiler Collection (base package)
ii  gnupg          1.4.9-3ubuntu1 GNU privacy guard - a free PGP replacement
ii  gpgv           1.4.9-3ubuntu1 GNU privacy guard - signature verification t
ii  grep           2.5.3~dfsg-6ub GNU grep, egrep and fgrep
ii  gzip           1.3.12-6ubuntu The GNU compression utility
ii  hashalot       0.3-5          Read and hash a passphrase
ii  hostname       2.95           utility to set/show the host name or domain
ii  ifupdown       0.6.8ubuntu15  high level tools to configure network interf
ii  initramfs-tool 0.92bubuntu18  tools for generating an initramfs
ii  initscripts    2.86.ds1-61ubu Scripts for initializing and shutting down t
ii  iproute        20080725-2     networking and traffic control tools
ii  iputils-ping   3:20071127-1   Tools to test the reachability of network ho
ii  kbd            1.14.1-4ubuntu Linux console font and keytable utilities
ii  klibc-utils    1.5.14-1~exp1u small utilities built with klibc for early b
ii  klogd          1.5-5ubuntu2   Kernel Logging Daemon
ii  language-pack- 1:8.10+2008102 translation updates for language English
ii  language-pack- 1:8.10+2008102 translations for language English
ii  laptop-detect  0.13.7ubuntu1  attempt to detect a laptop
ii  less           418-1          Pager program similar to more
ii  libacl1        2.2.47-2       Access control list shared library
ii  libatm1        2.4.1-17.2     shared library for ATM (Asynchronous Transfe
ii  libattr1       1:2.4.43-1     Extended attribute shared library
ii  libblkid1      1.41.3-1ubuntu block device id library
ii  libbz2-1.0     1.0.5-1ubuntu1 high-quality block-sorting file compressor l
ii  libc6          2.9-0ubuntu7   GNU C Library: Shared libraries
ii  libcap1        1:1.10-14build support for getting/setting POSIX.1e capabil
ii  libcomerr2     1.41.3-1ubuntu common error description library
ii  libcups2       1.3.9-11ubuntu Common UNIX Printing System(tm) - libs
ii  libcurl3-gnutl 7.18.2-8ubuntu Multi-protocol file transfer library (GnuTLS
ii  libdb4.2       4.2.52+dfsg-5  Berkeley v4.2 Database Libraries [runtime]
ii  libdb4.6       4.6.21-12      Berkeley v4.6 Database Libraries [runtime]
ii  libdb4.7       4.7.25-6ubuntu Berkeley v4.7 Database Libraries [runtime]
ii  libdevmapper1. 2:1.02.27-4ubu The Linux Kernel Device Mapper userspace lib
ii  libedit2       2.11~20080614- BSD editline and history libraries
ii  libfribidi0    0.10.9-1       Free Implementation of the Unicode BiDi algo
ii  libgcc1        1:4.3.2-2ubunt GCC support library
ii  libgcrypt11    1.4.1-2ubuntu1 LGPL Crypto library - runtime library
ii  libgnutls26    2.4.2-4        the GNU TLS library - runtime library
ii  libgpg-error0  1.4-2ubuntu7   library for common error values and messages
ii  libgpm2        1.20.4-3ubuntu General Purpose Mouse - shared library
ii  libidn11       1.10-3         GNU libidn library, implementation of IETF I
ii  libkeyutils1   1.2-9          Linux Key Management Utilities (library)
ii  libklibc       1.5.14-1~exp1u minimal libc subset for use with initramfs
ii  libkrb53       1.6.dfsg.4~bet MIT Kerberos runtime libraries
ii  libldap-2.4-2  2.4.11-0ubuntu OpenLDAP libraries
ii  liblocale-gett 1.05-4build1   Using libc functions for internationalizatio
ii  liblockfile1   1.08-3         NFS-safe locking library, includes dotlockfi
ii  liblzo2-2      2.03-1         data compression library
ii  libmagic1      4.26-2         File type determination library using "magic
ii  libncurses5    5.7+20081220-1 shared libraries for terminal handling
ii  libncursesw5   5.7+20081220-1 shared libraries for terminal handling (wide
ii  libnewt0.52    0.52.2-11.3ubu Not Erik's Windowing Toolkit - text mode win
ii  libpam-modules 1.0.1-5ubuntu1 Pluggable Authentication Modules for PAM
ii  libpam-runtime 1.0.1-5ubuntu1 Runtime support for the PAM library
ii  libpam0g       1.0.1-5ubuntu1 Pluggable Authentication Modules library
ii  libpcre3       7.8-2ubuntu1   Perl 5 Compatible Regular Expression Library
ii  libpopt0       1.14-4         lib for parsing cmdline parameters
ii  libreadline5   5.2-3build1    GNU readline and history libraries, run-time
ii  libsasl2-2     2.1.22.dfsg1-2 Cyrus SASL - authentication abstraction libr
ii  libsasl2-modul 2.1.22.dfsg1-2 Cyrus SASL - pluggable authentication module
ii  libselinux1    2.0.65-5       SELinux shared libraries
ii  libsepol1      2.0.30-2       Security Enhanced Linux policy library for c
ii  libslang2      2.1.3-3ubuntu3 The S-Lang programming library - runtime ver
ii  libsqlite3-0   3.5.9-6        SQLite 3 shared library
ii  libss2         1.41.3-1ubuntu command-line interface parsing library
ii  libssl0.9.8    0.9.8g-15ubunt SSL shared libraries
ii  libstdc++6     4.3.2-2ubuntu1 The GNU Standard C++ Library v3
ii  libtalloc1     1.2.0~git20080 hierarchical pool based memory allocator
ii  libtasn1-3     1.5-1          Manage ASN.1 structures (runtime)
ii  libtext-charwi 0.04-5build1   get display widths of characters on the term
ii  libtext-iconv- 1.7-1build1    converts between character sets in Perl
ii  libtext-wrapi1 0.06-6         internationalized substitute of Text::Wrap
ii  libusb-0.1-4   2:0.1.12-13    userspace USB programming library
ii  libuuid1       1.41.3-1ubuntu universally unique id library
ii  libvolume-id1  136-4          volume identification library
ii  libwbclient0   2:3.2.5-3ubunt client library for interfacing with winbind
ii  libwrap0       7.6.q-16       Wietse Venema's TCP wrappers library
ii  libx11-6       2:1.1.5-2ubunt X11 client-side library
ii  libx11-data    2:1.1.5-2ubunt X11 client-side library
ii  libxau6        1:1.0.4-1      X11 authorisation library
ii  libxcb-xlib0   1.1-1.1        X C Binding, Xlib/XCB interface library
ii  libxcb1        1.1-1.1        X C Binding
ii  libxdmcp6      1:1.0.2-3      X11 Display Manager Control Protocol library
rc  libxext6       2:1.0.4-1      X11 miscellaneous extension library
rc  libxmuu1       2:1.0.4-1      X11 miscellaneous micro-utility library
ii  locales        2.7.9-5        common files for locale support
ii  lockfile-progs 0.1.11ubuntu2  Programs for locking and unlocking files and
ii  login          1:4.1.1-6ubunt system login tools
ii  logrotate      3.7.7-2ubuntu1 Log rotation utility
ii  lsb-base       3.2-20ubuntu2  Linux Standard Base 3.2 init script function
ii  lsb-release    3.2-20ubuntu2  Linux Standard Base version reporting utilit
ii  lzma           4.43-14ubuntu1 Compression method of 7z format in 7-Zip pro
ii  makedev        2.3.1-88       creates device files in /dev
ii  mawk           1.3.3-13ubuntu a pattern scanning and text processing langu
ii  mime-support   3.44-1         MIME files 'mime.types' & 'mailcap', and sup
ii  mktemp         1.5-9          tool for creating temporary files
ii  module-init-to 3.3-pre11-4ubu tools for managing Linux kernel modules
ii  mount          2.14-1ubuntu4  Tools for mounting and manipulating filesyst
ii  mtd-tools      20080508-1ubun dummy package for transition purposes
ii  mtd-utils      20080508-1ubun Memory Technology Device Utilities
ii  nano           2.0.7-4        free Pico clone with some new features
ii  ncurses-base   5.7+20081220-1 basic terminal type definitions
ii  ncurses-bin    5.7+20081220-1 terminal-related programs and man pages
ii  net-tools      1.60-21ubuntu1 The NET-3 networking toolkit
ii  netbase        4.34ubuntu1    Basic TCP/IP networking system
ii  netcat         1.10-38        TCP/IP swiss army knife -- transitional pack
ii  netcat-traditi 1.10-38        TCP/IP swiss army knife
ii  ntpdate        1:4.2.4p4+dfsg client for setting system time from NTP serv
ii  openssh-client 1:5.1p1-4ubunt secure shell client, an rlogin/rsh/rcp repla
ii  openssh-server 1:5.1p1-4ubunt secure shell server, an rshd replacement
ii  openssl        0.9.8g-15ubunt Secure Socket Layer (SSL) binary and related
ii  passwd         1:4.1.1-6ubunt change and administer password and group dat
ii  perl-base      5.10.0-19ubunt minimal Perl system
ii  procps         1:3.2.7-9ubunt /proc file system utilities
ii  python         2.5.2-3ubuntu1 An interactive high-level object-oriented la
ii  python-minimal 2.5.2-3ubuntu1 A minimal subset of the Python language (def
ii  python2.5      2.5.4-0ubuntu1 An interactive high-level object-oriented la
ii  python2.5-mini 2.5.4-0ubuntu1 A minimal subset of the Python language (ver
ii  readline-commo 5.2-3build1    GNU readline and history libraries, common f
ii  samba          2:3.2.5-3ubunt a LanManager-like file and printer server fo
ii  samba-common   2:3.2.5-3ubunt Samba common files used by both the server a
ii  sed            4.1.5-8        The GNU sed stream editor
ii  startup-tasks  0.3.9-8        definitions of essential tasks to run on sta
ii  sudo           1.6.9p17-1ubun Provide limited super user privileges to spe
ii  sysklogd       1.5-5ubuntu2   System Logging Daemon
ii  system-service 0.3.9-8        definitions of essential system services
ii  sysv-rc        2.86.ds1-61ubu System-V-like runlevel change mechanism
ii  sysvinit-utils 2.86.ds1-61ubu System-V-like utilities
ii  tar            1.20-1         GNU version of the tar archiving utility
ii  tasksel        2.73ubuntu13   Tool for selecting tasks for installation on
ii  tasksel-data   2.73ubuntu13   Official tasks used for installation of Debi
ii  tcpd           7.6.q-16       Wietse Venema's TCP wrapper utilities
ii  tzdata         2008i-3        time zone and daylight-saving time data
ii  ubuntu-keyring 2008.03.04     GnuPG keys of the Ubuntu archive
ii  ubuntu-minimal 1.131          Minimal core of Ubuntu
ii  ucf            3.0011         Update Configuration File: preserve user cha
ii  udev           136-4          rule-based device node and kernel event mana
ii  unzip          5.52-12ubuntu1 De-archiver for .zip files
ii  update-inetd   4.31           inetd configuration file updater
ii  upstart        0.3.9-8        event-based init daemon
ii  upstart-compat 0.3.9-8        compatibility for System-V-like init
ii  upstart-logd   0.3.9-8        boot logging daemon
ii  util-linux     2.14-1ubuntu4  Miscellaneous system utilities
ii  uuid-runtime   1.41.3-1ubuntu universally unique id library
ii  vim-common     2:7.2.079-1ubu Vi IMproved - Common files
ii  vim-tiny       2:7.2.079-1ubu Vi IMproved - enhanced vi editor - compact v
ii  whiptail       0.52.2-11.3ubu Displays user-friendly dialog boxes from she
rc  x11-common     1:7.4~5ubuntu1 X Window System (X.Org) infrastructure
ii  xkb-data       1.3-2ubuntu5   X Keyboard Extension (XKB) configuration dat
ii  zlib1g         1:1.2.3.3.dfsg compression library - runtime

// Disk usage

root@debian:~# df -h
Filesystem            Size  Used Avail Use% Mounted on
rootfs                507M  148M  360M  30% /
tmpfs                 252M     0  252M   0% /lib/init/rw
varrun                252M   36K  252M   1% /var/run
varlock               252M     0  252M   0% /var/lock
udev                  252M  8.0K  252M   1% /dev
tmpfs                 252M     0  252M   0% /dev/shm
tmpfs                 252M     0  252M   0% /var/cache/apt

root@debian:~# mount
rootfs on / type rootfs (rw)
tmpfs on /lib/init/rw type tmpfs (rw,nosuid,mode=0755)
/proc on /proc type proc (rw,noexec,nosuid,nodev)
sysfs on /sys type sysfs (rw,noexec,nosuid,nodev)
varrun on /var/run type tmpfs (rw,nosuid,mode=0755)
varlock on /var/lock type tmpfs (rw,noexec,nosuid,nodev,mode=1777)
udev on /dev type tmpfs (rw,mode=0755)
tmpfs on /dev/shm type tmpfs (rw,nosuid,nodev)
devpts on /dev/pts type devpts (rw,noexec,nosuid,gid=5,mode=620)
tmpfs on /var/cache/apt type tmpfs (rw,noatime)

// top

top - 02:28:18 up  2:24,  1 user,  load average: 0.22, 0.15, 0.10
Tasks:  34 total,   1 running,  33 sleeping,   0 stopped,   0 zombie
Cpu(s):  0.0%us,  0.0%sy,  0.0%ni,100.0%id,  0.0%wa,  0.0%hi,  0.0%si,  0.0%st
Mem:    515636k total,    30784k used,   484852k free,        0k buffers
Swap:        0k total,        0k used,        0k free,    13104k cached

  PID USER      PR  NI  VIRT  RES  SHR S %CPU %MEM    TIME+  COMMAND
    1 root      18   0  2896 1896  576 S  0.0  0.4   0:51.94 init
    2 root      10  -5     0    0    0 S  0.0  0.0   0:00.00 kthreadd
    3 root      34  19     0    0    0 S  0.0  0.0   0:00.00 ksoftirqd/0
    4 root      10  -5     0    0    0 S  0.0  0.0   0:00.00 events/0
    5 root      20  -5     0    0    0 S  0.0  0.0   0:00.01 khelper
   50 root      16  -5     0    0    0 S  0.0  0.0   0:00.00 kblockd/0
   53 root      10  -5     0    0    0 S  0.0  0.0   0:00.00 khubd
   55 root      10  -5     0    0    0 S  0.0  0.0   0:00.06 kmmcd
   69 root      25   0     0    0    0 S  0.0  0.0   0:00.00 crypto
   70 root      25   0     0    0    0 S  0.0  0.0   0:00.00 crypto_ret
   75 root      20   0     0    0    0 S  0.0  0.0   0:00.00 pdflush
   76 root      15   0     0    0    0 S  0.0  0.0   0:00.86 pdflush
   77 root      15  -5     0    0    0 S  0.0  0.0   0:00.00 kswapd0
   78 root      15  -5     0    0    0 S  0.0  0.0   0:00.00 aio/0
  215 root      11  -5     0    0    0 S  0.0  0.0   0:00.06 mtdblockd
  216 root      20  -5     0    0    0 S  0.0  0.0   0:00.00 nftld
  239 root      11  -5     0    0    0 S  0.0  0.0   0:00.00 kcryptd/0

不小心搞亂了 U-Boot 的設定，現在連 NAND 的 Ubuntu 都無法開機了？

Ans : 重開機進入 U-Boot 模式，按以下操作：

Marvell>> resetenv
Marvell>> reset
...
...
Marvell>> setenv bootcmd 'nand read.e 0x800000 0x100000 0x400000; bootm 0x800000'
Marvell>> setenv bootargs console=ttyS0,115200 mtdparts=nand_mtd:0x400000@0x100000(uImage),0x1fb00000@0x500000(rootfs) rw root=/dev/mtdblock1 rw
Marvell>> saveenv
Marvell>> reset
