當File system 嚴重損壞時.Rstudio 這類軟體由於算法不夠理想,碎片跟Block無法計算正確.
會有不少錯誤大檔.
Scalpel 為先進 file carver recovery 數據恢復程式 ,用覺佳file header 跟block 算法.
效果跟速度比Rstudio 算式效果好
但是Scalpel 為純command 使用方式 介面不友善
因此本實驗室自行編寫其前台介面軟體
原始碼公開如下 (請尊重GPL 標準)

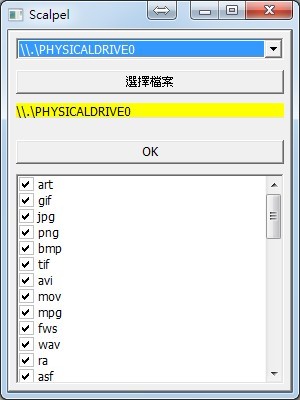

使用方法 下載 ZIP 包.解開
1.選擇Sources IMG 或指定物理磁碟
2.勾選預定恢復的附檔格式.
3.選定輸出目錄 (裡面不可有檔案) 就會自動執行
#-*- coding: UTF-8 -*- # Scalpel GUI 0.1 # Code by OSSLab thx . import wx import os import wmi import subprocess ext = """# art y 150000 \\x4a\\x47\\x04\\x0e \\xcf\\xc7\\xcb # art y 150000 \\x4a\\x47\\x03\\x0e \\xd0\\xcb\\x00\\x00 # gif y 5000000 \\x47\\x49\\x46\\x38\\x37\\x61 \\x00\\x3b # gif y 5000000 \\x47\\x49\\x46\\x38\\x39\\x61 \\x00\\x00\\x3b # jpg y 200000000 \\xff\\xd8\\xff\\xe0\\x00\\x10 \\xff\\xd9 # jpg y 200000000 \\xff\\xd8\\xff\\xe1 \\xff\\xd9 # png y 20000000 \\x50\\x4e\\x47? \\xff\\xfc\\xfd\\xfe # bmp y 100000 BM??\\x00\\x00\\x00 # tif y 200000000 \\x49\\x49\\x2a\\x00 # tif y 200000000 \\x4D\\x4D\\x00\\x2A # avi y 50000000 RIFF????AVI # mov y 10000000 ????moov # mov y 10000000 ????mdat # mov y 10000000 ????widev # mov y 10000000 ????skip # mov y 10000000 ????free # mov y 10000000 ????idsc # mov y 10000000 ????pckg # mpg y 50000000 \\x00\\x00\\x01\\xba \\x00\\x00\\x01\\xb9 # mpg y 50000000 \\x00\\x00\\x01\\xb3 \\x00\\x00\\x01\\xb7 # fws y 4000000 FWS # wav y 200000 RIFF????WAVE # ra y 1000000 .RMF # ra y 1000000 \\x2e\\x72\\x61\\xfd # asf y 8000000 \\x30\\x26\\xB2\\x75\\x8E\\x66\\xCF\\x11\\xA6\\xD9\\x00\\xAA\\x00\\x62\\xCE\\x6C # wmv y 20000000 \\x30\\x26\\xB2\\x75\\x8E\\x66\\xCF\\x11\\xA6\\xD9\\x00\\xAA\\x00\\x62\\xCE\\x6C # wma y 8000000 \\x30\\x26\\xB2\\x75 \\x00\\x00\\x00\\xFF # wma y 8000000 \\x30\\x26\\xB2\\x75 \\x52\\x9A\\x12\\x46 # mp3 y 8000000 \\xFF\\xFB??\\x44\\x00\\x00 # mp3 y 8000000 \\x57\\x41\\x56\\45 \\x00\\x00\\xFF\\ # mp3 y 8000000 \\xFF\\xFB\\xD0\\ \\xD1\\x35\\x51\\xCC\\ # mp3 y 8000000 \\x49\\x44\\x33\\ # mp3 y 8000000 \\x4C\\x41\\x4D\\x45\\ # doc y 10000000 \\xd0\\xcf\\x11\\xe0\\xa1\\xb1\\x1a\\xe1\\x00\\x00 \\xd0\\xcf\\x11\\xe0\\xa1\\xb1\\x1a\\xe1\\x00\\x00 NEXT # doc y 10000000 \\xd0\\xcf\\x11\\xe0\\xa1\\xb1 # pst y 500000000 \\x21\\x42\\x4e\\xa5\\x6f\\xb5\\xa6 # ost y 500000000 \\x21\\x42\\x44\\x4e # dbx y 10000000 \\xcf\\xad\\x12\\xfe\\xc5\\xfd\\x74\\x6f # idx y 10000000 \\x4a\\x4d\\x46\\x39 # mbx y 10000000 \\x4a\\x4d\\x46\\x36 # wpc y 1000000 ?WPC # htm n 50000 <html </html> # pdf y 5000000 %PDF %EOF\\x0d REVERSE # pdf y 5000000 %PDF %EOF\\x0a REVERSE # mail y 500000 \\x41\\x4f\\x4c\\x56\\x4d # rpm y 1000000 \\xed\\xab # dat y 4000000 regf # dat y 4000000 CREG # zip y 10000000 PK\\x03\\x04 \\x3c\\xac # rar y 10000000 Rar! # java y 1000000 \\xca\\xfe\\xba\\xbe # max y 1000000 \\x56\\x69\\x47\\x46\\x6b\\x1a\\x00\\x00\\x00\\x00 \\x00\\x00\\x05\\x80\\x00\\x00 # pins y 8000 \\x50\\x49\\x4e\\x53\\x20\\x34\\x2e\\x32\\x30\\x0d # vbox y 10000000000 <<<????????????????????????????????????????????????????????????\\x00\\x7f\\x10\\xda\\xbe # tgz y 2000000 \\x1f\\x8b\\x08\\x08 # 7z y 2147483648 \\x37\\x7a\\xbc\\xaf\\x27\\x1c # ogg y 15728640 x4fx67x67x53x00x02 x4fx67x67x53x00x02 NEXT # lnk y 4000 \\x4c\\x00\\x00\\x00\\x01\\x14\\x02\\x00\\x00\\x00\\x00\\x00\\xc0\\x00\\x00\\x00\\x00\\x00\\x00\\x46 # shd y 2000 \\x67\\x49\\x00\\x00 # shd y 2000 \\x4B\\x49\\x00\\x00 # blend y 1000000000 BLENDER_v ENDB # mus y 1000000000 ENIGMA\\x20BINARY\\x20FILE \\x13\\x00\\x06\\x00\\x00\\x00 # dat y 8192 DynamicDictionary # amr y 65535 #!AMR # plist y 4096 <plist </plist # email y 4096 From:""" class MyApp(wx.App): #outputWindowClass = LogWindow def __init__(self, redirect=True): wx.App.__init__(self, redirect) class main(wx.Frame): def __init__(self, parent, id, title, size): wx.Frame.__init__(self, parent, id, title, size = size) self._main() def CreateElement(self): # initial UI panel = wx.Panel(self, -1, style=wx.RAISED_BORDER) # Get physical disk driver c = [x.Name for x in wmi.WMI().query("SELECT * FROM Win32_DiskDrive")] self.phyDrivers = wx.Choice(panel, -1, choices =c) self.phyDrivers.SetSelection(0) # Create selecti image button self.file = wx.Button(panel, -1, u"選擇檔案") # Create Start scalpel button self.start = wx.Button(panel, -1, u"OK") # choice options global ext c = [] for i in ext.split("# ")[1:]: __ = i.split(" ", 1)[0] if __ not in c: c.append( __ ) self.checkList = wx.CheckListBox(panel, -1, size=wx.DefaultSize, choices=c) self.checkList.SetChecked(range(len(c))) # Create label self.label = wx.StaticText(panel, -1, self.phyDrivers.GetStringSelection()) self.label.SetBackgroundColour('yellow') # Setting UI box = wx.BoxSizer(wx.VERTICAL) box.Add(self.phyDrivers, 0, wx.ALL|wx.EXPAND, 5) box.Add(self.file, 0, wx.ALL|wx.EXPAND, 5) box.Add(self.label, 0, wx.ALL|wx.EXPAND, 5) box.Add(wx.StaticLine(panel, -1), 0, wx.ALL, 5) box.Add(self.start, 0, wx.ALL|wx.EXPAND, 5) box.Add(self.checkList, 2, wx.ALL|wx.EXPAND, 5) # Binding event self.phyDrivers.Bind(wx.EVT_CHOICE, self.OnChoice) self.start.Bind(wx.EVT_BUTTON, self.OnStart) self.file.Bind(wx.EVT_BUTTON, self.OnSelectFile) panel.SetSizer(box) def OnChoice(self, evt): self.label.SetLabel( evt.GetString() ) def OnSelectFile(self, evt): dlg = wx.FileDialog( self, message="Choose a image file", defaultDir=os.getcwd(), defaultFile="", #wildcard=wildcard, style=wx.OPEN | wx.MULTIPLE | wx.CHANGE_DIR ) if dlg.ShowModal() == wx.ID_OK: paths = dlg.GetPaths() path = paths[0] else: path = None dlg.Destroy() if path: self.label.SetLabel( path ) def OnStart(self, evt): # generate scalpel.conf global ext buf = [] __ = ext.split("# ") for i in self.checkList.GetCheckedStrings(): [buf.append(x) for x in ext.split("# ") if x.startswith(str(i))] with open("./scalpel.conf", "wb") as fp: fp.write( "".join(buf) ) dlg = wx.DirDialog(self, "Choose output directory:", style=wx.DD_DEFAULT_STYLE #| wx.DD_DIR_MUST_EXIST #| wx.DD_CHANGE_DIR ) if dlg.ShowModal() == wx.ID_OK: directory = dlg.GetPath() else: directory = None dlg.Destroy() if directory: img = self.label.GetLabelText() subprocess.call( "bin\\scalpel.exe -v -o %s %s" % (directory, img) ) subprocess.call("rundll32.exe user32,MessageBoxA aaa") def _main(self): # Create Buttons & Texts self.CreateElement() self.Centre() self.Show() if __name__ == "__main__": app = MyApp(redirect=True) frame = main(None, -1, "Scalpel", (300, 400)) app.MainLoop()
