Skype Gateway for Asterisk with FreeSwitch

    簡介

    系統環境:

    • Virtual machine on VMware ESX
    • CentOS 5.5
    • PIAF 1.7.5.5
    • Asterisk 1.6.2.17
    • FreeSWITCH Version 1.0.head (git-7768808 2011-06-18 11-52-37 -0500)
    • 一般個人的 Skype 帳號

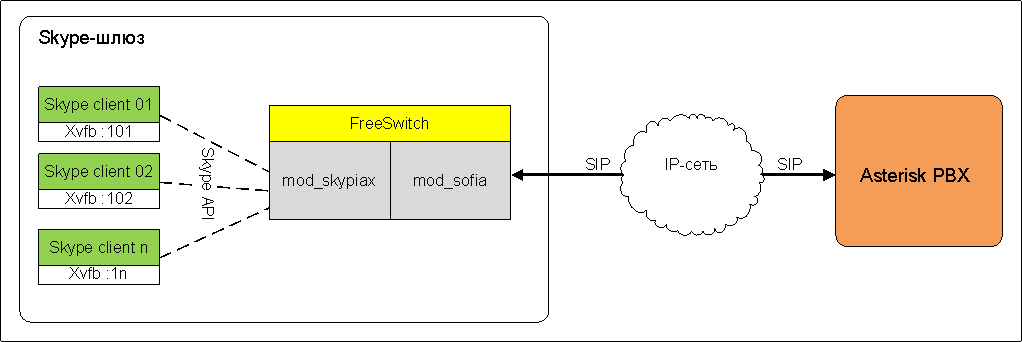

    架構示意圖:


    安裝/設定 FreeSwitch

    vorbis 套件

    yum install libvorbis libvorbis-devel vorbis-tools libogg libogg-devel


    curl 套件

    yum install curl curl-devel libidn-devel


    編譯 FreeSwitch 所需的套件

    yum install gcc ncurses ncurses-devel make gcc-c++ libtermcap libtermcap-devel zlib zlib-devel libtool bison bison-devel openssl-devel bzip2 bzip2-devel wget newt newt-devel subversion flex gdbm-devel db4-devel


    MySQL 套件
    註:如果使用 PIAF 可忽略。

    yum install mysql mysql-server mysql-devel

    ODBC 套件

    yum install unixODBC unixODBC-devel mysql-connector-odbc libtool-ltdl


    FreeSwitch FAX 模組
    註:如果使用 PIAF 可忽略。

    yum install libtiff libtiff-devel libxml2 libxml2-devel libjpeg libjpeg-devel


    XMPP 函式庫(連接 Google Talk)

    yum install gnutls gnutls-devel gnutls-utils


    OpenLDAP 套件

    yum install compat-openldap openldap-clients openldap-devel openldap-servers openldap


    SNMP 函式庫

    yum install net-snmp-devel net-snmp-libs net-snmp-utils net-snmp


    Mail Server 套件

    yum install sendmail sendmail-devel sendmail-cf


    X11 及 Alsa 函式庫

    yum install libX11-devel Xvfb alsa-utils libXv libXScrnSaver xorg-x11-fonts* alsa-lib-devel libXScrnSaver kernel-devel alsa-lib libXScrnSaver libXv


    TCL 套件

    yum install tcl tcl-devel


    安裝 git
    註:這套件是為了要下載 FreeSwitch 安裝檔

    yum install git


    或者使用編譯方式安裝

    cd /usr/src
    wget http://www.kernel.org/pub/software/scm/git/git-1.7.3.tar.gz
    tar -xf git-1.7.3.tar.gz
    cd git-1.7.3
    ./configure --prefix=/usr
    make
    make install


    安裝 FreeSwitch

    cd /usr/src
    git clone git://git.freeswitch.org/freeswitch.git
    cd freeswitch/
    ./bootstrap.sh
    ./configure
    make && make install && make hd-sounds-install && make hd-moh-install && make samples


    安裝模組 mod_skypopen

    編輯 /usr/src/freeswitch/modules.conf
    找到這一行並移除註解符號

    ...
    endpoints/mod_skypopen
    ...


    執行

    make install


    安裝 OSS driver for Skype

    cd /usr/src/freeswitch/src/mod/endpoints/mod_skypopen/oss
    make clean
    make
    insmod ./skypopen.ko
    mknod /dev/dsp c 14 3


    安裝及設定 Skype Client

    • 請選擇要設定的 Skype Channel 數以及相應的 Skype username/password。
    • 請保持網路暢通,否則線上安裝會失敗。
    • 多個 Skype channels 是否共用一組 Skype 帳號,one 是;multi 否。
    cd /usr/src/freeswitch/src/mod/endpoints/mod_skypopen/install
    ./install.pl


    以 skype channel x4 為例

    Enter your name
    [Giovanni]: <whatever name you wanted>

    Enter the full path of the Skype download directory
    [/tmp/skype_download]:
    You gave: '/tmp/skype_download'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for Skype client binary
    [/usr/bin]:
    You gave: '/usr/bin'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for FreeSWITCH modules' config files
    [/usr/local/freeswitch/conf/autoload_configs]:
    You gave: '/usr/local/freeswitch/conf/autoload_configs'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for fake sound driver
    [/usr/local/freeswitch/skypopen/skypopen-sound-driver-dir]:
    You gave: '/usr/local/freeswitch/skypopen/skypopen-sound-driver-dir'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for Skype clients config
    [/usr/local/freeswitch/skypopen/skype-clients-configuration-dir]:
    You gave: '/usr/local/freeswitch/skypopen/skype-clients-configuration-dir'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for Skype clients startup script
    [/usr/local/freeswitch/skypopen/skype-clients-startup-dir]:
    You gave: '/usr/local/freeswitch/skypopen/skype-clients-startup-dir'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the directory full path for Skype clients symlinks
    [/usr/local/freeswitch/skypopen/skype-clients-symlinks-dir]:
    You gave: '/usr/local/freeswitch/skypopen/skype-clients-symlinks-dir'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter how many Skype clients will be launched
    [5]: 4
    You gave: '4'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter 'one' or 'multi'
    [one]: one
    You gave: 'one'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the Skype clients username
    [your_own_skype_username]: <your skype username>
    You gave: '.......'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Enter the Skype clients password
    [your_own_skype_password]: <your skype pass>
    You gave: '....'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y

    Are you sure you like the values? Write 'sure' for yes
    [nope]: sure
    You gave: 'sure'
    It's OK? Please answer 'Y' for yes or 'N' for not [N]: y


    啟動剛剛設定的 Skype channels x4

    sh /usr/local/freeswitch/skypopen/skype-clients-startup-dir/start_skype_clients.sh


    設定 FreeSwitch  啟動檔

    cd /usr/src/freeswitch/build/
    cp freeswitch.init.redhat /etc/init.d/freeswitch
    vi /etc/init.d/freeswitch


    找到這幾行

    PID_FILE=${PID_FILE-/opt/freeswitch/run/freeswitch.pid}
    FS_USER=${FS_USER-freeswitch}
    FS_FILE=${FS_FILE-/opt/freeswitch/bin/freeswitch}
    FS_HOME=${FS_HOME-/opt/freeswitch}
    FREESWITCH_ARGS="-nc"


    修改成

    PID_FILE=${PID_FILE-/usr/local/freeswitch/run/freeswitch.pid}
    FS_USER=${FS_USER-root}
    FS_FILE=${FS_FILE-/usr/local/freeswitch/bin/freeswitch}
    FS_HOME=${FS_HOME-/usr/local/freeswitch}
    FREESWITCH_ARGS="-nc -nonat"


    執行

    chmod +x /etc/init.d/freeswitch
    chkconfig --add freeswitch
    chkconfig freeswitch on


    設定電話從 Asterisk 到 FreeSwitch 的路由

    編輯 /usr/local/freeswitch/conf/dialplan/public.xml
    找到這幾行

    <include>
      <context name="public">


    在下方加上

    <extension name="skype_uri">
       <condition field="destination_number" expression="^skype/(.*)$">
          <action application="set" data="skype_get_inband_dtmf=true"/>
          <action application="bridge" data="skypopen/RR/$1"/>
       </condition>
    </extension>


    設定 mod_skypopen

    編輯 /usr/local/freeswitch/conf/autoload_configs/skypopen.conf.xml
    找到這幾行

    <param name="context" value="default"/>
    <param name="destination" value="5000"/>


    改成

    <param name="context" value="skype"/>
    <param name="destination" value="3200"/>


    註:將所有 Skype 來電導入 Ext#3200。

    新增 context skype

    編輯 /usr/local/freeswitch/conf/dialplan/skype.xml

    <?xml version="1.0" encoding="utf-8"?>
    <include>
      <context name="skype">

        <extension name="skype-call">
          <condition field="destination_number" expression="^(3[1-5]00)$">
           <action application="set" data="skype_get_inband_dtmf=true"/>
          <action application="bridge" data="sofia/gateway/asterisk/$1"/>
          </condition>
        </extension>
      </context>
    </include>


    註:將分機 3100-3500 的來電送到 Gateway Asterisk。

    新增 Gateway Asterisk

    編輯 /usr/local/freeswitch/conf/sip_profiles/external/asterisk.xml

    <include>
      <gateway name="asterisk">
      <param name="username" value="freeswitch"/>
      <param name="realm" value="IPServidorAsterisk"/>
      <param name="from-domain" value="IPServidorAsterisk"/>
      <param name="password" value="password"/>
      <param name="extension" value="freeswitch"/>
      <param name="proxy" value="IPServidorAsterisk"/>-->
      <param name="expire-seconds" value="3600"/>
      <param name="register-transport" value="udp"/>
      <param name="retry-seconds" value="30"/>
      <param name="extension-in-contact" value="true"/>
      <param name="ping" value="25"/>
      </gateway>
    </include>


    註:修改幾個連結 Asterisk 的參數。

    設定 Asterisk

    新增 SIP Trunk
    freePBX > Trunks > Add SIP Trunk

    Trunk Name: freeswitch
    PEER Details:

    type=peer
    context=from-trunk
    host=dynamic
    fromuser=freeswitch
    defaultuser=freeswitch
    secret=password
    qualify=yes
    port=5080
    directmedia=no
    dtmfmode=rfc2833
    disallow=all
    allow=ulaw&alaw


    Incoming Setting: 空白
    Register String: 空白

    Tips:

    * fromuser, defaultuser,password 必須與 FreeSwitch 的 asterisk.xml 設定一樣。

    新增 Inbound Route
    freePBX > Inbound Rotes > Add Inbound Route

    DID Numbers: 3200
    Set Destination: <whatever you wanted>

    Tips:

    3200 必須與 skypopen.conf.xml , skype.xml 相同。

    啟動 FreeSwitch 及測試

    /usr/local/freeswitch/bin/freeswitch -nonat


    載入 mod_skypopen 模組

    freeswitch@pbx.local>load mod_skypopen
    ...
    2011-06-19 13:41:02.222682 [CONSOLE] switch_loadable_module.c:946 Successfully Loaded [mod_skypopen]
    2011-06-19 13:41:02.222682 [NOTICE] switch_loadable_module.c:145 Adding Endpoint 'skypopen'
    2011-06-19 13:41:02.222682 [NOTICE] switch_loadable_module.c:274 Adding API Function 'sk'
    freeswitch@pbx.local> 2011-06-19 13:41:02.222682 [NOTICE] switch_loadable_module.c:274 Adding API Function 'skypopen'
    2011-06-19 13:41:02.222682 [NOTICE] switch_loadable_module.c:274 Adding API Function 'skypopen_chat'
    2011-06-19 13:41:02.222682 [NOTICE] switch_loadable_module.c:379 Adding Chat interface 'skype'


    註:要關閉/離開 freeswitch 只要執行 shutdown。

    到這裡,請確定 FreeSwitch 以及 mod_skypopen 啟動皆正常,且沒有錯誤。使用另一個 Skype 帳號,撥到設定在 FreeSwitch  的 Skype,此時 Asterisk 應該會有電話進來。

    設定 FreeSwitch 啟動後自動載入 mod_skypopen

    編輯 /usr/local/freeswitch/conf/autoload_configs/modules.conf.xml
    加上這幾行

    <!-- Skype Gateway -->
    <load module="mod_skypopen"/>

    機器重啟後,如何啟動 FreeSwitch
    // 先啟動 Skype Client
    # sh /usr/local/freeswitch/skypopen/skype-clients-startup-dir/start_skype_clients.sh
    # ps -ef | grep skype

    root      3389     1  6 18:07 pts/0    00:00:01 /usr/local/freeswitch/skypopen/skype-clients-symlinks-dir/skype101 --dbpath=/usr/local/freeswitch/skypopen/skype-clients-configuration-dir/skype101 --pipelogin
    root      3405     1  9 18:07 pts/0    00:00:01 /usr/local/freeswitch/skypopen/skype-clients-symlinks-dir/skype102 --dbpath=/usr/local/freeswitch/skypopen/skype-clients-configuration-dir/skype102 --pipelogin

    // 手動啟動 FreeSwitch
    # service freeswitch start
    # /usr/local/freeswitch/bin/fs_cli

    freeswitch@internal> sk list
    sk console is NOT yet assigned
    F ID        Name        IB (F/T)    OB (F/T)    State   CallFlw         UUID
    = ====    ========      =======     =======     ======  ============    ======
      1     [skype101]        0/0        0/0        IDLE    IDLE
      2     [skype102]        0/0        0/0        IDLE    IDLE

    Total Interfaces: 2  IB Calls(Failed/Total): 0/0  OB Calls(Failed/Total): 0/0


    Tips:

    * 如果設定 2 個 Skype channels, 應該要出現 skype101-102 的 process。

    * 要離開 FS CLI, 輸入 /exit。

    FAQ

    Q: 啟動 start_skype_clients.sh 出現錯誤訊息:

    ERROR: Module snd_pcm_oss does not exist in /proc/modules
    ERROR: Module snd_mixer_oss does not exist in /proc/modules
    ERROR: Module snd_seq_oss does not exist in /proc/modules

    Ans: 執行 ps -ef | grep skype,如果有看到 process,表示 skype client 已經啟動成功,可忽略這些錯誤。


    Q: 錯誤訊息:2011-06-19 13:32:37.931790 [ERR] sofia_reg.c:1861 asterisk Registration Failed with status DNS Error [503]. failure #2

    Ans:

    • 確定 Asterisk 服務有啟動
    • 確定 asterisk.xml 與 Asterisk Trunk 設定都是正確的。
    Q: 如何減少 Skype Channels

    Ans: 修改兩個檔案

    1. /usr/local/freeswitch/skypopen/skype-clients-startup-dir/start_skype_clients.sh
    2. /usr/local/freeswitch/conf/autoload_configs/skypopen.conf.xml
    Q: DTMF 辨識度如何

    Ans:

    • Inbound Call (Skype -> IVR on Asterisk): PASS
    • Outbound Call (SIP -> Skype Out):
